Mac SE/30 Peeker Diagnostic Kit (v4.5)
Fix your SE/30 Board with the Mac SE/30 Peeker!

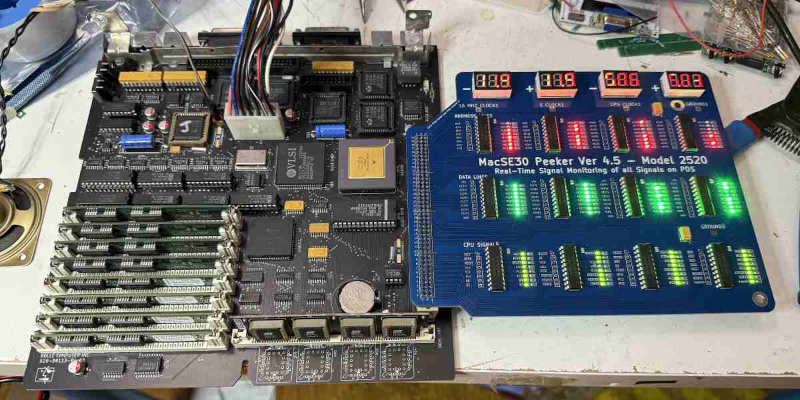

The Mac SE/30 Peeker helps identify issues, provide real time monitoring of important signals, and assist in repairs. Plug it into your PDS slot, then get full insight into voltages, address and data lines and all the processor signals! Find weird issues, broken traces and similar problems.

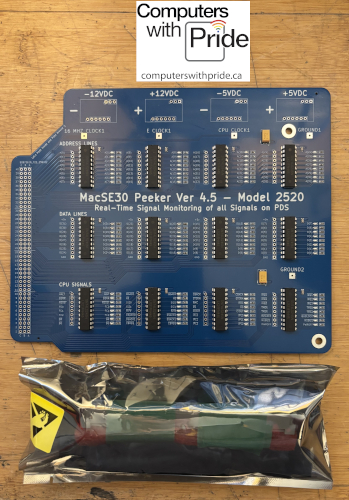

Available only as a build-it-yourself-kit.
For project details direct from Rudy, check him out on GitHub: https://github.com/RudyRetroIntel/Vintage-Computer-Diagnostics
Download the assembly and usage instructions.
Features:
- Plugs directly into the Processor-Direct Slot (PDS) for plug and play.
- Real time viewing of power voltages for +5VDC, -5VDC, +12DC, and -12VDC.
- Ability to monitor all voltages for power fluctuations in real time.
- Real time viewing of all address line signals – A0 to A31.
- Real time viewing of all data line signals – D0 to D31.
- Real time viewing of support signals. See page 4 for list of all support signals.
- Ability to access all signals via oscilloscope with access points next to each SMD LED and label.
- Direct access to CPU clock and 16Mhz clock.
- Board does not interfere with access to other components on the motherboard.
- Please note that this board is only for the SE/30 and is not intended to use with other computers unless they are compatible with cards from the SE/30.

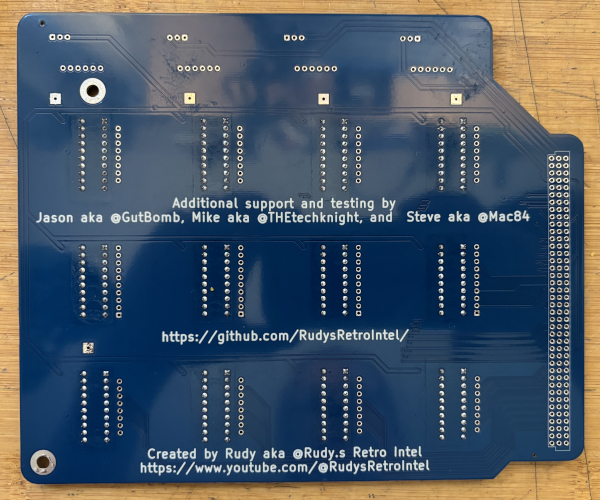

Contributors:
- Jason aka @GutBomb https://gutbomb.net/ – Jason volunteered to perform testing, validation and help diagnose initial issues with the prototypes. His inputs, testing, troubleshooting and design suggestions helped make this project a success.
- Steve aka @Mac84 https://www.youtube.com/@Mac84 – Volunteered to provide additional feedback and testing.
- Rudy of Rudy's Retro Intel created this amazing video Building The Most Advanced Mac SE30 Monitoring Board Ever Made which is a great introduction to the Peeker board and how to build it.
$110
